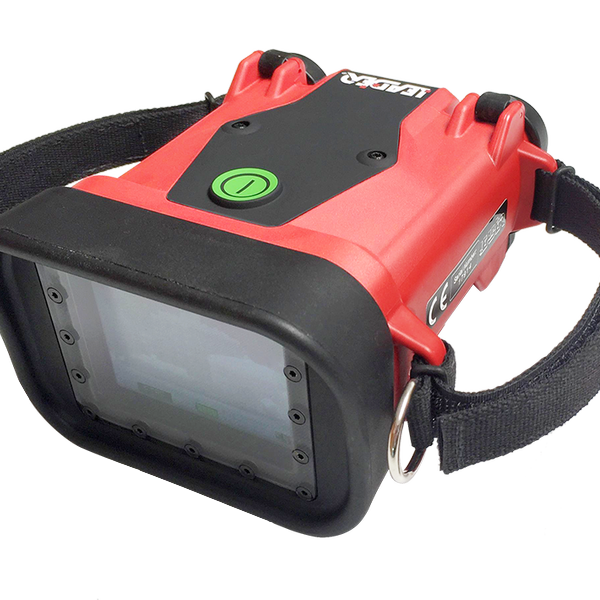

Leader TIC 3.3 Thermal imaging camera
Efficient and versatile = 3 buttons
Particularly suitable for the first attack.
- Compact & lightweight: 910 g with 2 batteries
- 3.5“ screen
- Wide range of T°C: -40°C to +1150°C
- Video, photo and still image recording
- Fast start: <5 sec.
- Batteries guaranteed for 6 years / 5000 cycles of charges
- 5 year warranty camera & 10 year warranty sensor
- Up to 8h of battery life with 2 batteries depending on the model chosen
- Germanium lens to protect optics
- Optional pistol-type handle
- Optional wireless transmission kit for live video streaming
3 large sized buttons for easy use with gloves that give access to functions ON/OFF, Zoom x2 x4, Colouring modes, Still image, Picture shooting, Video recording, Picture gallery, Laser pointer.
3 colouring modes as standard: Fire, Search and Inverse + 2 optional colouring modes: Cold and Multicolour.
LiFePO4 batteries (Lithium Iron Phosphate) are differentiated from Lithium Ion batteries. A LiFePO4 pack is more resistant to high temperatures (no emission of gas up to 140°C, no explosion).
product characteristics
Efficient and versatile because of its 3 action buttons, the Leader TIC 3.3 thermal imaging camera is particularly suitable for indoor fire attacks.
Combined with its compact size (910 g), this TIC has all the important features for fire operations (5 colouring modes, Video recording, Photo shooting, Laser pointer, Zoom, etc.) It incorporates an ultra-sensitive infrared sensor (17μ Silicon Amorphous aSi 384 x 288), a germanium window to protect the internal electronics and a wide-angle lens (H 51° V 40°).
Leader TIC 3.3 thermal imaging camera has the status of a fire attack camera and is ideal for fire operations, search for missing persons and areas on fire.
Also, an optional wireless transmission kit can be plugged for live image streaming on 3 digital supports (mobile, tablet, computer) at the same time! This is useful for training purpose or special ops.
Up to 5 colouring modes
-
MULTICOLOR -
COLD FINDER, showing the relatively coldest areas in blue -
FIRE / STD -
SEARCH -
INVERSE
Specifications LEADER TIC 3.3
| LEADER TIC 3.3 320X240 | |
|---|---|
| Dimensions | 165 (L) x 140 (W) x 85 (H) mm (H: 195 mm with optional pistol grip) |
| Weight | 935g with 2 batteries/ 850g with 1 battery (pistol grip +165g) |
| Display | 3.5“ LCD / 76.800 Pixel Backlighted / Brightness: 800 cd/m2 |
| Frequency | 60 Hz Fps |
| Temperature Range | -40° to +1150°C |
| Colorization | Standard: Fire, Search, Inverse Option: Cold Finder, Multicolor |
| Housing | |
|---|---|
| Material | PUR / Elastomer |
| Drop Test | 2 m on concrete |
| IP | IP67 / 1 meter 30 minutes |
| Heat resistance | 150°C for 15 min / 260°C for 5 min |
| Sensor | |
|---|---|
| Type | 17µ Amorphous Silicon (aSi) Resolution 384x288 |
| Spectral range | 7 - 14 μm |
| Temperature sensitivity | NETD: <40mK (<0,04°C) |
| Optics | |
|---|---|
| Material | Carbon and anti reflex coated lens protected by an Infrared window |
| Focus | 0,35 m to infinity / F/1.3 speed |
| Visual field / FOV | H: 51° / V:40° / D: 65° |
| General | |
|---|---|
| Power supply | LiFePO4 batteries (85g) |
| Running time (20°C ) with Eco-Boost-System since October 2018 |
> 8h (2 batteries) / >4h (1 battery) > 6h (2 batteries) with non-active video > 5h (2 batteries) with recording video |
| Boot time | < 5 sec |
| Charging voltage | 12/24 VDC or 100-240 VAC |
| Charging time (for 2 batt / consider half for 1 batt) |
Charging bay: ~1h30 Mains charger: 100% in ~2h 90% in ~1h30, 80% in ~1h20 |
| Charging cycles | > 5000 |
| Memory (optional) | 8 GB internal SD card (8h video or 1000 pics) |
| Warranty | 5 years on camera / 6 years on batteries 10 years on thermal sensor / 1 year on accessories (chargers, charging bay, etc...) |
